Reed Switch Type Liquid Level Switch

CK-1 dry reed type magnetic liquid level switch (hereinafter referred to as liquid level switch) adopts imported high-quality dry reed switch, matched with UHZ-517 series magnetic flap liquid level gauge, and is used to control or alarm the liquid level in the container . When the liquid level reaches the control or alarm position, the liquid level switch will send an on-off signal.

Features

The liquid level switch is not in direct contact with the process medium, works reliably, and is not affected by process conditions. It has high temperature resistance, explosion-proof and shock-proof protection functions, and it can be directly connected to the instrument alarm circuit system. Real-time control of industrial process liquid levels is also possible.

Selection data Contact us

Technical Parameters

Working temperature: -40～450℃

Contact capacity: AC220V, 1A (or DC24V, 0.5A)

Contact life: 1×105 times

Protection class: IP67

Explosion-proof mark: flameproof type ExdⅡBT4～6 Gb, intrinsically safe type ExiaⅡCT4～6 Ga

Electrical interface: M20×1.5 internal thread

Contact form: one normally open, one normally closed

Note: The dry reed magnetic liquid level switch can be directly connected to the instrument alarm circuit system, such as PLC system and DCS system. If the drag load is an inductive load such as an AC contactor, it must pass through the conversion amplifier. If it is used in an intrinsically safe system, an isolation safety barrier must be used.

Download

Solution

Nuclear Industry

The company specializes in the R&D, production and sales of nuclear and non-nuclear on-site process instruments. The main products are liquid level (level), pressure, temperature and flow instruments.

Oil

Thirty-one years of experience and professional technology of Xingshen Instruments have made it a leader in the domestic instrument industry. Advanced and high-quality products and solutions promote sustainable development of customers.

Chemical Industry

Thirty-one years of experience and professional technology of Xingshen Instruments have made it a leader in the domestic instrument industry. Advanced and high-quality products and solutions promote sustainable development of customers.

Related Products

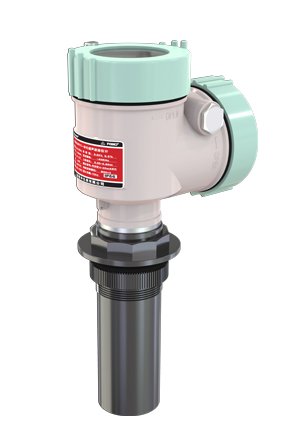

Integrated Ultrasonic Level Meter
