High temperature, medium and high pressure type

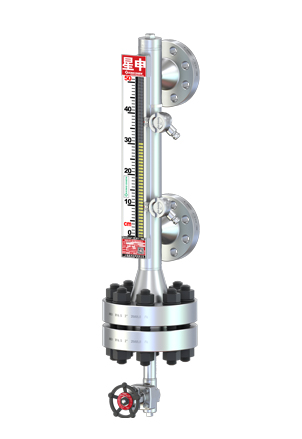

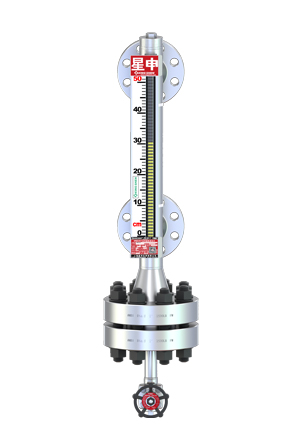

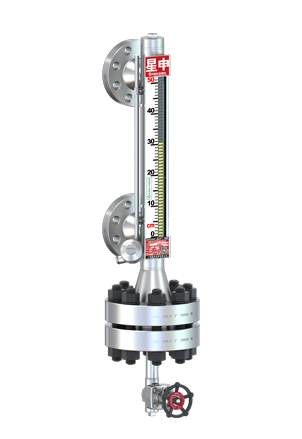

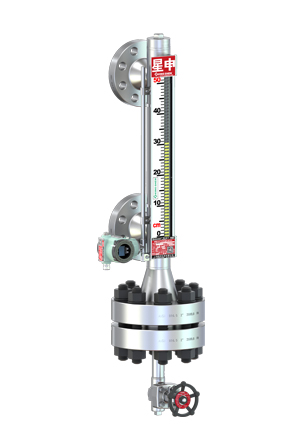

UHZ-517C12 high temperature, medium and high pressure type side-mounted magnetic liquid level gauge is a new type of on-site display instrument. The product has the characteristics of simple structure, intuitive and novel reading, no blind spot in observation, large measurement range, safety and reliability, and convenient installation, use and maintenance. This product is widely used in petroleum, chemical industry, electric power, metallurgy, light industry, pharmaceutical, papermaking, environmental protection and other industries to provide on-site indication of the liquid level in various storage tanks, tanks and other containers, and the company's production All kinds of liquid level transmitters and liquid level switches realize the automatic process control and measurement of various industries.

Features

The magnetic liquid level gauge is a field indicating instrument with an all-steel structure. It is mainly composed of a main pipe, a liquid level indicator, a magnetic floating ball, and a drain valve. This series of liquid level gauges is designed and manufactured according to Archimedes' law and the principle of magnetic coupling. The magnetic float is placed in the non-magnetic main pipe. Through the buoyancy of the medium in the main pipe, the float moves up and down with the liquid level of the medium, and then through the principle of magnetic coupling, it drives the liquid level indicator outside the main pipe to rise and fall synchronously to indicate the liquid. s position.
