Basic Type

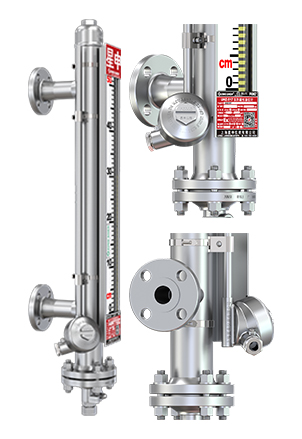

UHZ-517C10 basic side-mounted magnetic liquid level gauge is a new type of on-site display instrument. The product has the characteristics of simple structure, intuitive and novel reading, no blind spot in observation, large measurement range, safety and reliability, and convenient installation, use and maintenance. This product is widely used in petroleum, chemical industry, electric power, metallurgy, light industry, pharmaceutical, papermaking, environmental protection and other industries to provide on-site indication of the liquid level in various storage tanks, tanks and other containers, and the company's production All kinds of liquid level transmitters and liquid level switches realize the automatic process control and measurement of various industries.

Features
The magnetic liquid level gauge is a field indicating instrument with an all-steel structure. It is mainly composed of a main pipe, a liquid level indicator, a magnetic floating ball, and a drain valve. The liquid level gauge is designed and manufactured according to Archimedes' law and the principle of magnetic coupling. The magnetic float is placed in the non-magnetic main pipe. Through the buoyancy of the medium in the main pipe, the float moves up and down with the liquid level of the medium, and then through the principle of magnetic coupling, it drives the liquid level indicator outside the main pipe to rise and fall synchronously to indicate the liquid. s position. The product can be equipped with a liquid level transmitter and a liquid level switch, etc., and realizes remote display, alarm and control through secondary instruments or computer industrial control systems.
Selection data Contact us
Technical Parameters

1. Nominal pressure: PN≤2.5MPa

2. Working temperature: -20℃<t≤200℃

3. Measuring range: 300~15000mm

4. Following speed: ≤0.08m/s

5. Maximum allowable error: ±10mm, ±5mm

6. Medium density: ρ≥0.40g/cm³

7. Medium density difference (observation point): ∆ρ≥0.15g/cm³

8. Medium viscosity: μ≤0.4Pa.S

9. Environmental vibration: ≤25Hz,

Amplitude: ≤0.5mm

10. Traced steam pressure (optional): PN≤1.6MPa

11. Insulation interface (optional): G1/2”(M) (or specified by the user)

12. Blowdown valve outlet connection size: ball valve: G3/4” (M) + pipe cap; gate valve: 1/2NPT (F) (or specified by the user)

13. Flange standard: HG/T 20592, HG/T 20615, (or specified by the user)

14. Protection level: IP66

※ If the user has special requirements, please specify when ordering, the company can make special designs according to user requirements
