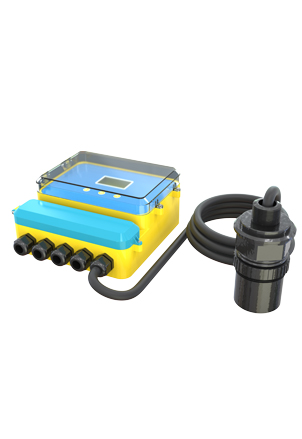

Integrated Ultrasonic Level Meter

CDSL5511 integrated ultrasonic level (material level, liquid level) meter is a non-contact, high reliability, high cost performance, easy installation and maintenance level measurement instrument. It can meet most of the level measurement requirements without contacting the medium. This series of ultrasonic level gauges is a new generation of ultrasonic level gauges with completely independent property rights developed by our company after years of hard work.

Features

1. Advanced echo tracking algorithm: Adopt advanced echo digital filter tracking algorithm, which can effectively capture real echo in noisy electrical and acoustic noise.
2. Multiple compensation modes: built-in temperature compensation, and the split can be connected with an external temperature sensor. There is a sound velocity correction mode, which can better adapt to different work sites and achieve more accurate measurement.
3. Dot-matrix LCD, full Chinese menu: full Chinese menu makes debugging and application easier. Dot-matrix LCD can display a variety of graphics. When debugging the product, it can be more intuitive and clear.
4. Flexible measurement mode: There are two measurement modes of material level and distance, and the reference position can be set flexibly to make the displayed value more intuitive.
5. Programmable relay output: The relay is programmable, each relay can be set to high and low alarm or off, and the alarm value and hysteresis value can be set individually.
