FM CW Radar Level Meter

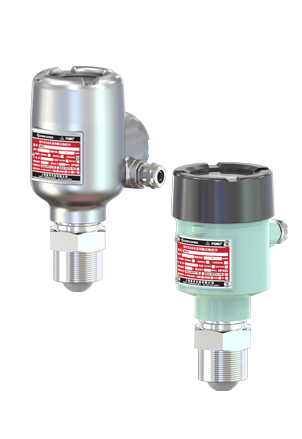

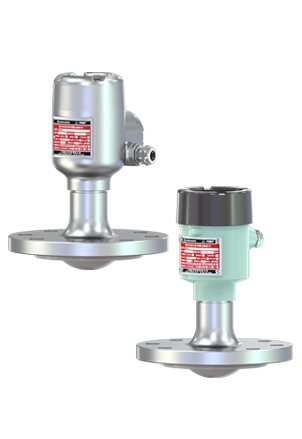

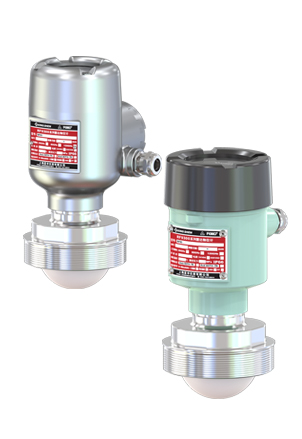

RF9380 frequency modulation continuous wave radar level meter is the RF93 series 80G frequency modulation continuous wave radar level meter produced by our company, 76-81GHz series products, refers to frequency modulation continuous wave (FMCW) radar products working at 76-81GHz, supporting four-wire system and two-wire applications. Multiple models, the maximum range of the product can reach 120m, and the blind zone can reach 8 cm. Because of its higher operating frequency and shorter wavelength, it is especially suitable for solid applications. The working method of transmitting and receiving electromagnetic waves through the lens has unique advantages in high dust and harsh temperature environments (+200°C). The instrument provides flange or threaded fixing methods, making installation convenient and easy.

Features

1. Based on the self-developed CMOS millimeter-wave radio frequency chip, it realizes a more compact radio frequency architecture, a higher signal-to-noise ratio, and a smaller blind spot
2. 5GHz working bandwidth enables the product to have higher measurement resolution and measurement accuracy
3. The narrowest 3° antenna beam angle, the interference in the installation environment has less impact on the instrument, and the installation is more convenient
4. The wavelength is shorter and has better reflection characteristics on solid surfaces, so there is no need to use special universal flanges for aiming
5. Support remote debugging and remote upgrade, reduce waiting time and improve work efficiency
6. Support mobile phone Bluetooth debugging, convenient for on-site personnel to maintain
